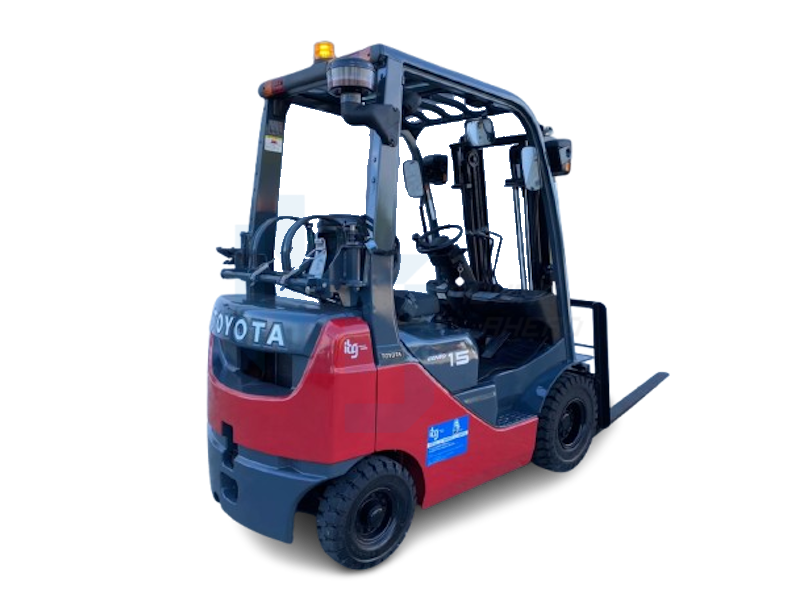

Toyota 8FB15

V3000 Fork Positioner

Model			8FB10	8FBH10	8FB14	8FBH14	8FB15	8FBH15	40-8FB15	8FB18	8FBH18	8FB20	8FBH20	40-8FB20	8FB25	8FBH25	40-8FB25	8FB30	8FBJ35
Model			Operation Position			Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated	Seated
Load Capacity		kg	1,000	1,250	1,350	1,350	1,500	1,500	1,500	1,750	1,750	2,000	2,000	2,000	2,500	2,500	2,500	3,000	3,500
Load Center		mm	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500
Overall Width		mm	1,060	1,060	1,060	1,060	1,115	1,115	1,160	1,115	1,115	1,160	1,160	1,230	1,160	1,160	1,230	1,240	1,240
Turning Radius (Outside)		mm	1,750	1,750	1,760	1,760	1,770	1,770	1,980	1,780	1,780	1,980	1,980	2,145	2,000	2,000	2,170	2,210	2,270
Overhead Guard Height		mm	2,025	2,105	2,025	2,105	2,025	2,105	2,105	2,025	2,105	2,025	2,105	2,160	2,025	2,105	2,160	2,195	2,195
Length to Fork Face		mm	2,075	2,075	2,080	2,080	2,080	2,080	2,215	2,115	2,115	2,240	2,240	2,405	2,290	2,290	2,435	2,490	2,575
Voltage/Capacity (5-hour ratings)	STD	V/AH	48/330	48/545	48/330	48/545	48/400	48/545	48/600	48/400	48/545	48/450	48/730	48/845	48/565	48/730	48/845	80/370	80/370
Voltage/Capacity (5-hour ratings)	High	V/AH	48/485	-	48/485	-	48/485	-	48/730	48/485	-	48/600	-	-	48/600	-	-	80/470	80/470
Electric Motors	Drive	kW	7.6	7.6	7.6	7.6	7.6	7.6	10.7	7.6	7.6	10.7	10.7	10.7	10.7	10.7	10.7	11.9	11.9
	Load Handling	kW	9.5	9.5	9.5	9.5	9.5	9.5	12.2	9.5	9.5	12.2	12.2	12.2	12.2	12.2	12.2	14.4	14.4
	Energy Consumption According to VDI Cycle **	kWh/h	3.6	3.6	3.8	3.8	3.9	4.0	4.3	4.2	4.3	4.1	4.2	4.2	4.5	4.6	4.6	5.0	5.5
